Electrical Design Software
Powerful Circuit Breaker Selection Software
TemCurve6
is Terasaki's FREE circuit breakers selection software. It includes numerous NEW and IMPROVED features not available in earlier versions.
Features
Download
Features
• Full range of TemPower 2 ACBs, TemBreak 2 MCCBs and TemDin 2 MCBs
• Fifteen selectable print report options
• User-defined curves
• Technical data sheets for products are included

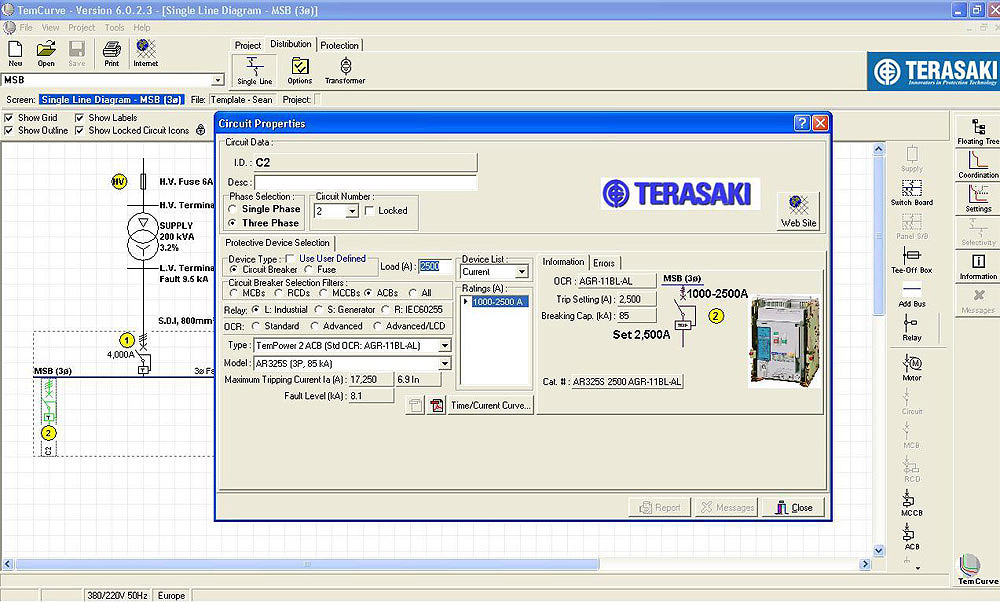

USER INPUTS

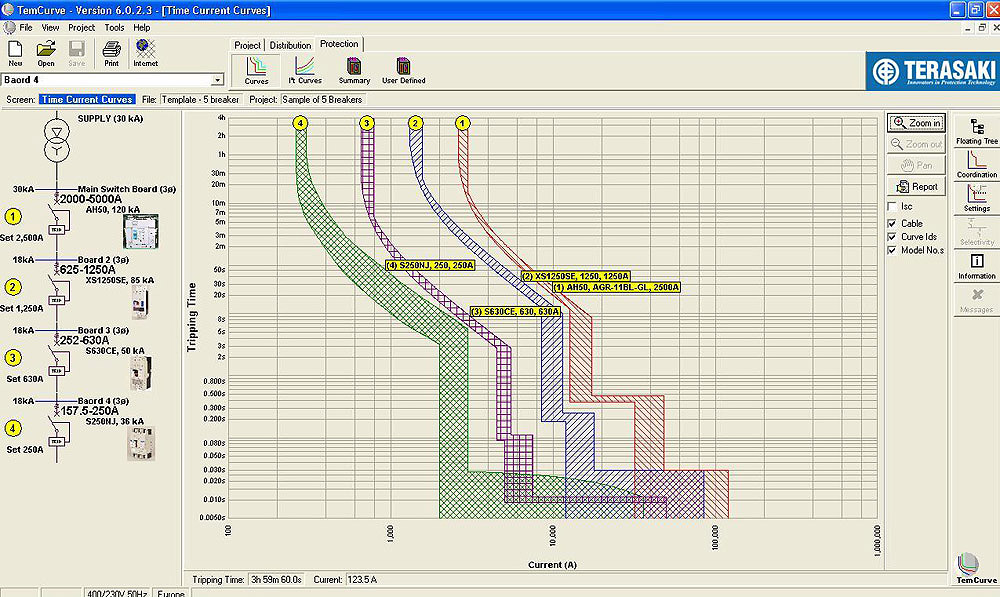

CALCULATIONS

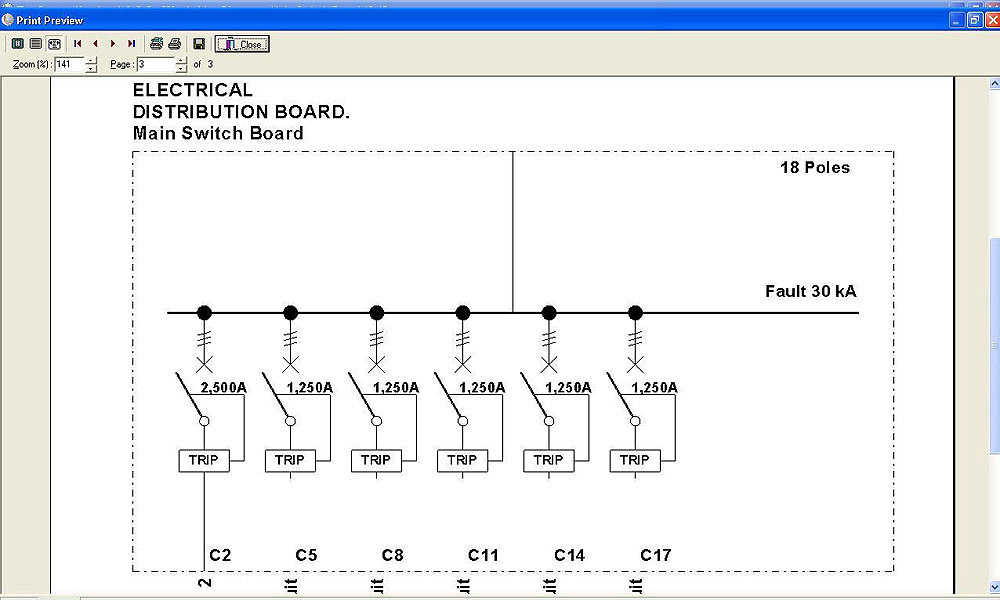

OUTPUTS
• load currents
• cable size and lengths
• transformer details
• selectivity / discrimination
• cascade / backup
• fault level
• cable size check
• diversity check
automatic selection of correctly rated circuit breakers for every circuit

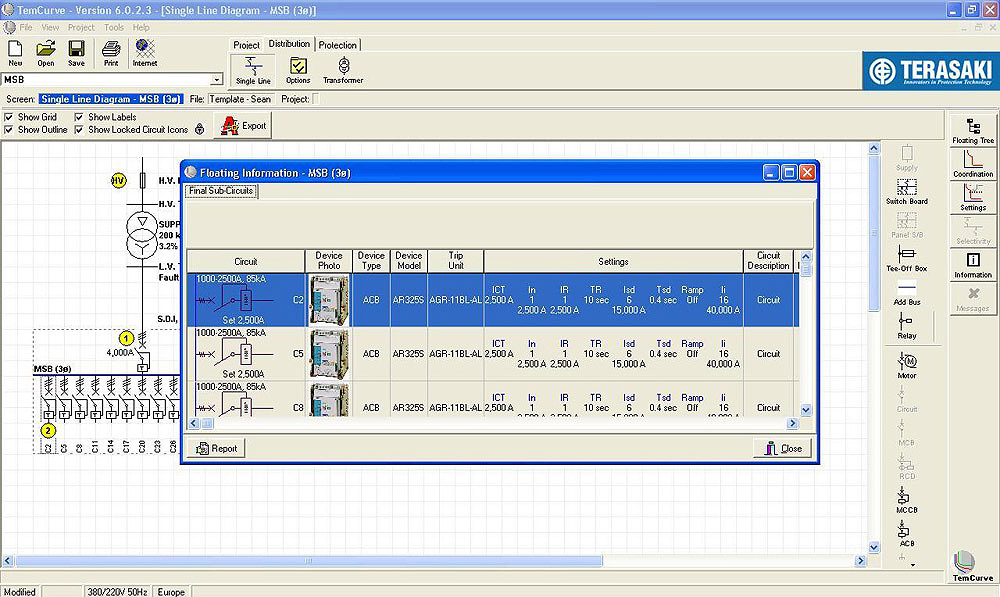

DATA
• Circuit breaker characteristics
• cable characteristics
Back to top
Download
• Download TemCurve 6 from
http://www.powercad.com.au/downloads.php
• Click on Terasaki logo
• UserName: 35775
• Password: 2AR015A
